Mixing Pump Group for Radiator heating system
Model:S1101

Function

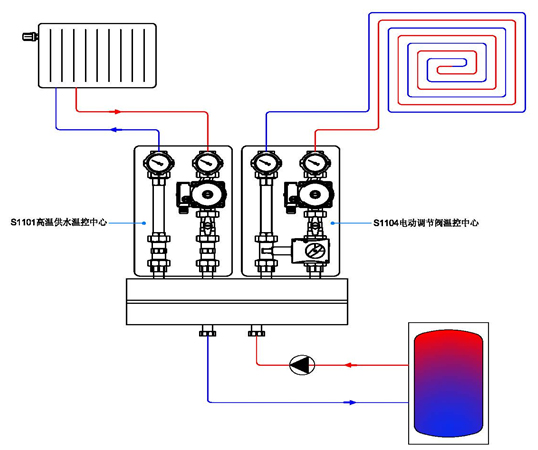

Mixing Pump Group is applied for high and low temperature heating system. It connects to hydraulic distributor to ensure the circulation and regulation in radiator heating system.

Technical Data
Connection Size:G1"F
Distance:125mm
Max. Working Temperature:100℃
Max. Working Pressure:10bar
Temperature gauge Range 0℃~120℃
Pump:
Wilo RS25/6
Grundfos 25-6
pump head 6m
Temperature≤ 110℃
Pressure ≤ 10 bar
Power  AC 230V，50Hz
Insulation Shell:Material EPP
